System Overview

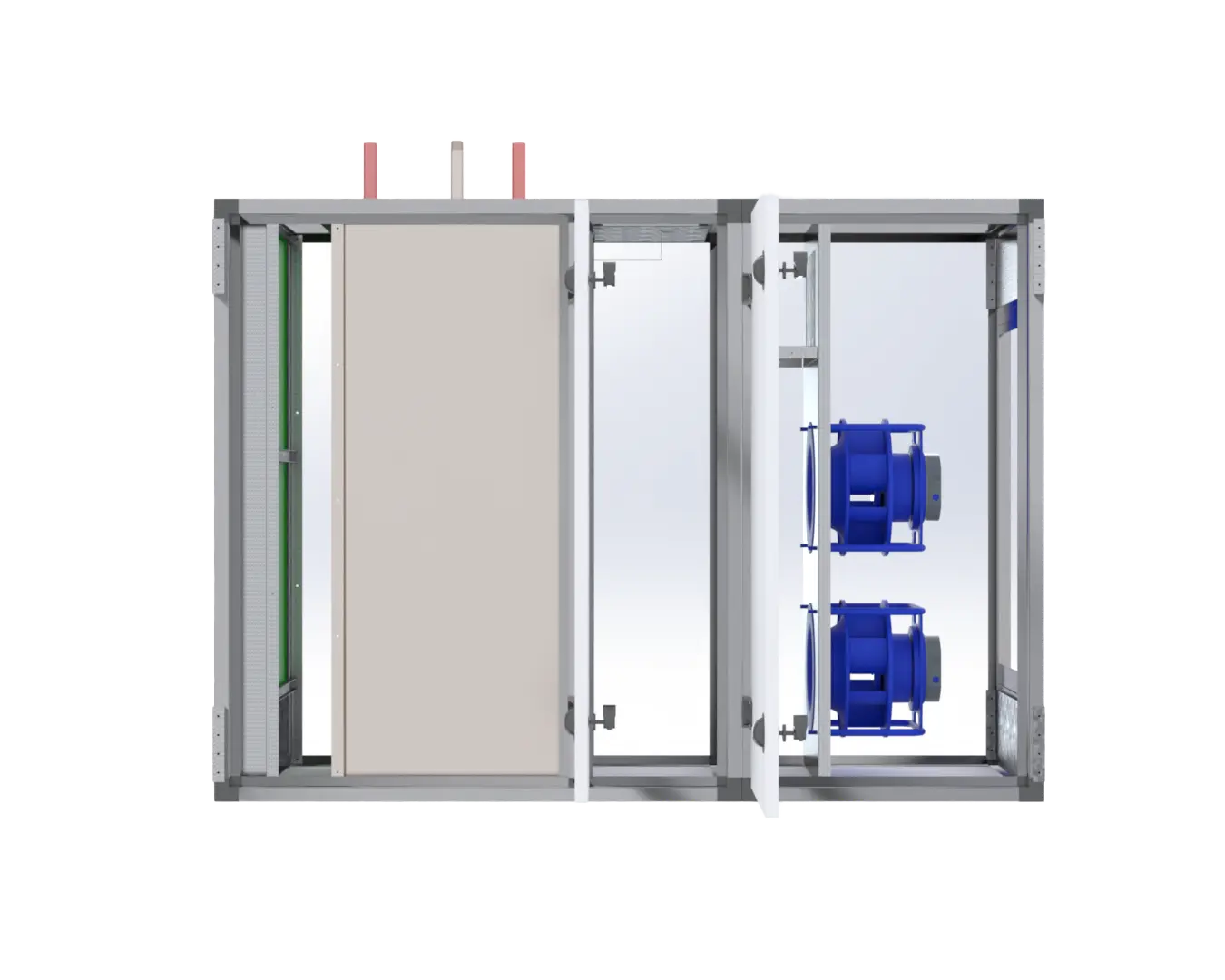

 Oxygen8�s Terra series is a modular design fan coil unit with optional coil modules for heating, cooling and Daikin VRV integration.
Standard Features
 �High Efficiency Variable Speed EC Direct-Drive Motor
 Backward Inclined Fan(s)
 Standard Temperature Sensor (SA)
 Integrated Controls with BACnet IP and BTL-Certification
 Non-Fused Disconnect Switch
 1� Foam Filled Double-Wall Panels (R6.5)
 22-Gauge Galvanized Steel Exterior/Interior Panel
 Filter Alarms: Signaled by factory mounted pressure sensors to measure filter pressure drop across filter
 2� MERV 13 Supply Air Filter
 Removable Hinge Pins for Limited Access
 Sensors for Dehumidification Control
Electric Coil Specifications
 SCR Controlled
 Non-Fused Disconnect Switch
 Optional single-point power supply from coil to unit
 Installation Options
 24 Months from start-up
 VRV Integration
 Factory Mounted DX Coils and Factory-Brazed Expansion Valve kit to the Coil
 Factory Mounted Reheat Coils and Factory-Brazed Expansion Valve kit to the Coil
 Factory Mounted and Wired W- or D-Controller
Options
 3- or 5-Year Warranty Add-On
 Optional Sensors: Humidity, Pressure
